Monday, August 8, 2011

Chop Stick



Visiondivision was commissioned by the Indianapolis Museum of Art to create an innovative concession stand for 100 Acres: The Virginia B. Fairbanks Art & Nature Park, which will begin construction this summer.

The design is based on the universal notion that you need to sacrifice something in order to make something new. Every product is a compound of different pieces of nature, whether it is a cell phone, a car, a stone floor or a wood board; they have all been harvested in one way or another. Our project is about trying to harvest something as gently as possible so that the source of what we harvest is displayed in a pure, pedagogic and respectful way—respectful to both the source itself and to everyone visiting the building.

The raw material we selected is a 100-foot yellow poplar tree, the state tree of Indiana, known for its beauty, respectable size, and good properties as hardwood. We found a great specimen standing in a patch of forest outside of Anderson, Indiana. Our goal is to make the best out of this specific poplar tree, from taking it down and through the whole process of transforming it into a useful building that will be part of one of the finest art parks in the United States. As the project proceeds, we continue to be surprised by all of the magical features that are revealed in refining a tree into a building; both in the level of craftsmanship and knowledge of woodworkers and arborists, and also of the tree itself.


Master diagram

The first step is to cut down the tree, which is done when the ground is dry enough to manage a crane on the site, with special mats placed on the ground to secure the crane’s operation. A cushion of small, already chopped-down trees is created to reduce the impact of the tree’s fall and to keep the majority of its limbs intact.

The tree is then transported to the park site, where it becomes the suspended horizontal beam of this new structure, which will be almost entirely made out of the tree itself. The tree’s bark is removed to prevent it from falling on bystanders, a process that occurs naturally as the moisture content in the wood drops, causing the tree to shrink and the bark to lose its grip. Craftsmen loosen entire cylinders of bark from the trunk that are then flattened and cut into a standard shingle length. The shingles are carefully stacked and placed under pressure to avoid curling. The stacks are then kiln dried to the proper moisture content, sterilized, and kept in climate-controlled storage until they are ready for use. Bark shingles are very durable, long lasting (up to 80 years), and maintenance free.

After debarking, pieces of wood are extracted from the suspended tree and used for each of the components of the concession stand; structural support of the entire construction, pillars and studs for the kiosk, swings under the tree for kids, benches and tables to be placed under the tree’s crown, from which special fixtures made out of branches will hang. Many school children visit 100 Acres, and we had those kids in mind when we decided to hang swings from the tree.

On a smaller scale, we are exploring ways to use other parts of the tree in the concession stand, including its root system, which is separated from the tree when cut down. The roots have many edible features, such as root bark used to make tea and tonics that could be sold in the kiosk, for example. Pressed leaves and flowers taken from the tree will be ornaments in the front glass of the kiosk. There is also the possibility of extracting honey from poplar tree flowers, which could be something for sale on site. The branches that are less than five inches in diameter are cut away to prevent eventual rotting, and those can be used for details such as legs for the chairs and tables, or grinded down into sawdust for use as insulation.


The cut down of the tree and the transportation to the IMA
(Image courtesy: Donna Sink)

Here is a series of pictures from the two intense days in Indy this summer when the tree was taken down gently from a forest outside of Anderson, Indiana and taken to the 100 Acres: The Virginia B. Fairbanks Art & Nature Park at The Indianapolis Museum of Arts.


The fine craftsmen of Indiana conferencing before the chop down


Connecting the wires to the crane, and choping down smaller limbs


The yellow poplar tree hanging from the crane

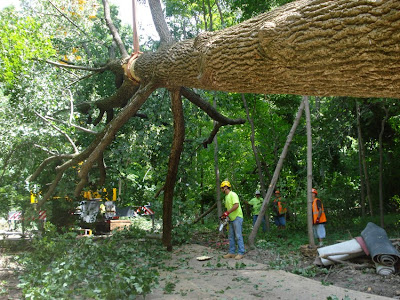

the tree in a horizontal position


Flowers from the tree and smaller limbs are saved for later use


The back part of the tree is cut in slices for tables at the outdoor seating area

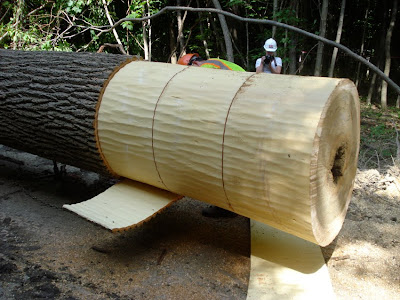

A first debarking of the tree to fit the truck


Getting the tree on the back part of the truck


The truck is finally loaded



The tree outside Anderson, Indiana, ready to roll


Truck on its way to Indianapolis on narrow roads with police escort


The tree was later debarked on the temporary studs at the 100 Acres



The crown of the debarked tree at the 100 acres ready for further refinement.

A huge thanks to our collaborators!

Curator: Lisa Freiman
Curator: Sarah Green
Local architect: Donna Sink
Engineer: Dave Steiner
Logger: Dave and Dave
IMA CEO: Max Andersson
And all the other staff of the IMA and other involved people at the Chop Stick project
